Name: Tools Kit FTTH Fiber Optic Tools Kit Carrying Bag Portable KIT
Brand: Dawnergy
Price: 40 USD

Brand Name : Dawnergy

Model Number : FTTH-8

Certification : CE

Place of Origin : CHINA

MOQ : 50

Price : 40USD

Packaging Details : Hard paper box package,wooden pallet

Package size : 100*150*120mm

Gross weight : 1.5kg

Contact Now

FTTH Fiber Optic Tools Kit product description

Selling Units: Single item

Single package size: 100*150*120mm

Single gross weight: 1.50 kg

Configuration List

NO.	Quantity(pcs)	Product
1	1	Carrying Bag of whole kits
2	1	Optical Power Meter
3	1	SC transfer connector for power meter
4	1	Visual Faul Locator
5	1	1mw Laser pointer Visual Fault Locator 5km
6	1	Fiber Cleaver FC-6S
7	1	Bag for cleaver
8	1	CFS-2 Fiber Optic Cable Stripper
9	1	FTTH Drop Cable Stripper
10	1	Alcohol bottle
11	1	Fixed length rail Small Allen Wrench

Tools Kit FTTH Fiber Optic Tools Kit Carrying Bag Portable KIT

Optical Power Meter
Measurement range	-70～10dBm
Type of probe	InGaAs
Range of wave length	800～1700nm
Standard of wave length	850,980,1300,1310,1490,1550,1625
Resolution	indication:0.1% Logarithmic indication:0.01dBm
Working temperature	-10～60℃
Storage temperature	-25～70℃
Auto power-off time	10min
Continuous working hours	At least 40 hours
Dimensions	1808328mm
Power supply	Rechargeable lithium battery
Weight	260g

Tools Kit FTTH Fiber Optic Tools Kit Carrying Bag Portable KIT

Visual Fault Locator Specification
Type	Data
Output Power	>1mW 5KM
Wavlength	650nm
2Hz	Yes
Connetor	Universal Connector
Battery	AA2
Storage Temperature	-20～+70
Working Temperature	-10～+60
Laser Type	LD
Weight	178g
Dimensions	168mm*27mm

Tools Kit FTTH Fiber Optic Tools Kit Carrying Bag Portable KIT

FC-6S Fiber Cleaver
Model	FC-6S Optical Fiber Cleaver
Applicable fibers	Singlemode
Fiber Diameter	125um
Coating Diameter	250um～900um
Typical Cleave Angle	within 1 Degrees
Cleave Length	9-18mm(Single Fiber -0.25mm Coating) 10-18mm(Single Fiber -0.9mm Coating)
Blade life Time	36,000 cleaves(3,000 per blade position)
Cleave Dimensions	636863mm
Weight	380g
Model	FC-6S Optical Fiber Cleaver
Applicable fibers	Singlemode
Fiber Diameter	125um
Coating Diameter	250um～900um
Typical Cleave Angle	within 1 Degrees

Tools Kit FTTH Fiber Optic Tools Kit Carrying Bag Portable KIT

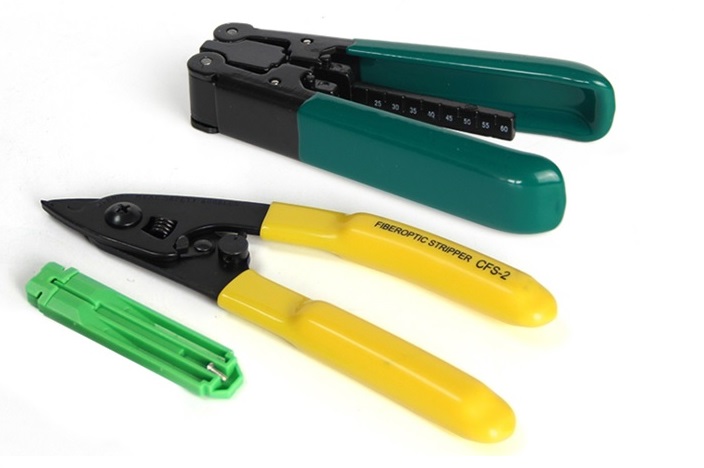

CFS-2 Fiber Optic Cable Stripper
Applicable fiber	250um+ Protective layer
Material	Antirust primer
Length	165mm
weight	126g

FTTH Drop Cable Stripper
Applicable fiber	1/2 core fiber
Applicable scope	3mm(W)*2mm(H)
Fiber coated diameter	Φ0.25&Φ0.9
Fiber cladding diameter	125um
External size	30mm(W)110mm(D)20mm(H)
Blade life	Metal reinforcing core 1000 times Non-metal reinforcing core 2000 times
